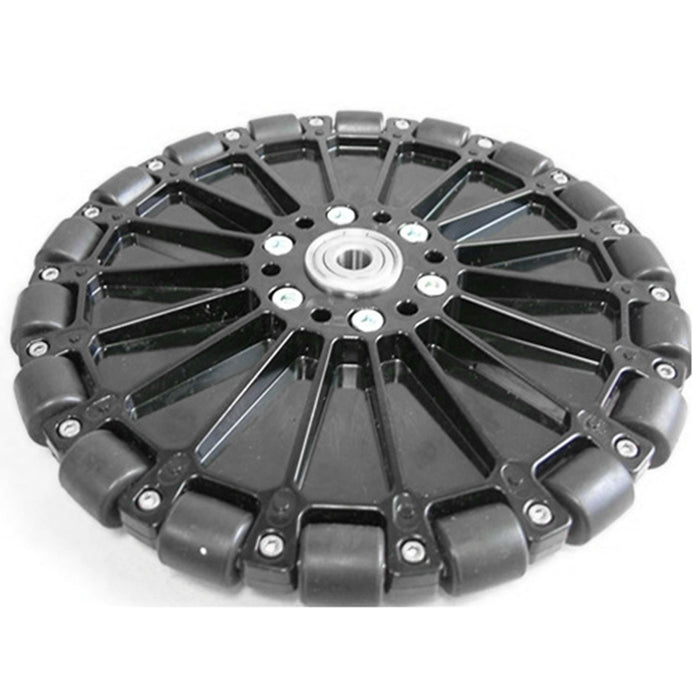

8 in. Plastic Omni Wheel w/ 3/8 in. Ball Bearings

Name: 8 in. Plastic Omni Wheel w/ 3/8 in. Ball Bearings
Rating: 5.0 (2 reviews)

8" Plastic Omni Wheel with 3/8" Ball Bearings Included Hardware: Two - 8" Plastic Omni Wheel Webs Eighteen - Black SBR Rollers Eighteen - 1x1/8 Steel Dowel Pins Thirty-Two - Omni-roller ...Read More

5.0 out of 5 stars

Read Reviews (2) Write a Review

View Full Details

Product Overview

8" Plastic Omni Wheel with 3/8" Ball Bearings

Included Hardware:

Two - 8" Plastic Omni Wheel Webs
Eighteen - Black SBR Rollers
Eighteen - 1x1/8 Steel Dowel Pins
Thirty-Two - Omni-roller Sleeves
Six - Individual #10-32 x 1/2" SHCS
Six - Individual M5 Nylock Nuts
Eighteen - Individual M3 Nylock Nuts
Eighteen - Individual M3 x 10mm SHCS
Two - 1614ZZ shielded, 3/8" id ABEC3 ball bearings

Usage:
With Sprocket:

If you wish to drive this wheel with a sprocket, then the sprocket needs to be attached to the side of the wheel, and one ball bearing needs to be pressed into the wheel (on one side). The ball bearing must have a 1.125" od. For a 1/2" id, use am-0030. For a 3/8" id, use am-0573. Use #10-24x3/4 thread forming screws

With Bearings:

To press beaings into this wheel (for a free spinning wheel or for use with a sprocket), two ball bearings need to be pressed into the wheel (one on each side). The ball bearing must have a 1.125" od. For a 1/2" id, use am-0030. For a 3/8" id, use am-0573.

Made in the USA:
Bearings and screws were not made in the USA. All other components were designed, manufactured and assembled in the United States of America.

Specifications

Bolt Pattern: 6 hole on a 1.875 in. diameter bolt circle
Bore: 1.125 in. diameter bore
Diameter: 7.9 in.
Load Capacity: 50 lbs (rollers don't spin pas this weight)
Material: Black Polycarbonate, Brass
Product Lifecycle: purchased as <a href='/products/8-in-plastic-omni-wheel'>am-0048</a> and <a href='/products/3-8-in-id-1-125-od-ball-bearing-1614zz'>Qty 2 of am-0209</a>
Roller Axle: Steel Dowel Pin
Roller Durometer: 80A
Rollers: 18
Weight: 1.5 lbs
Width Across Middle: 1.04 in.
