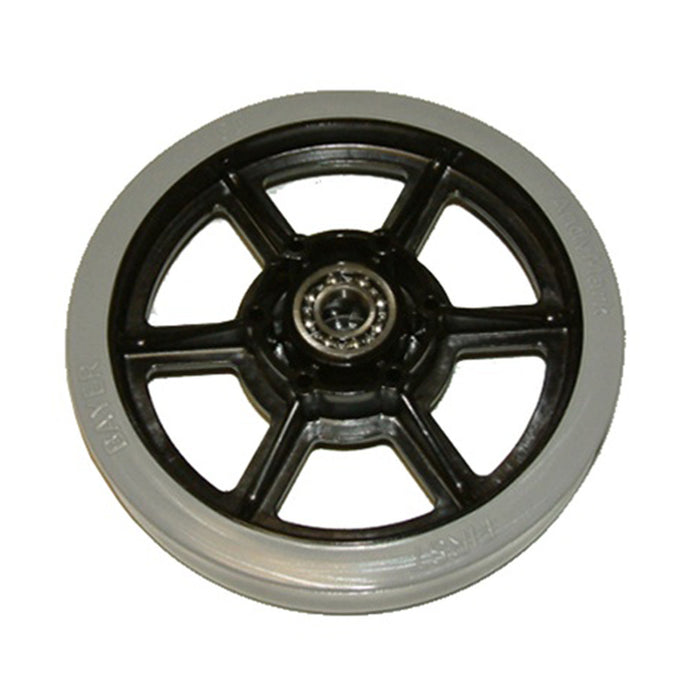

6 in. SmoothGrip Wheel w/ 1/2 in. Bearings

am-0148

$15.00

This is the 2008 FIRST Wheel, provided to FRC teams in the Kit of Parts, with two R8 ball bearings (1/2 in.bore) pressed into each wheel. Usage: Use #10-24x3/4 thread forming screws to attach spr...Read More

0 reviews

Write a Review

Product Overview

This is the 2008 FIRST Wheel, provided to FRC teams in the Kit of Parts, with two R8 ball bearings (1/2 in.bore) pressed into each wheel.


Usage:
Use #10-24x3/4 thread forming screws to attach sprockets or hubs to this wheel. Three (3) screws are sufficient for each wheel.

With Sprocket: With Bearings:
  • To press beaings into this wheel (for a free spinning wheel or for use with a sprocket), two ball bearings need to be pressed into the wheel (one on each side). The ball bearing must have a 1.125 in. od. For a 1/2 in. id, use am-0030. For a 3/8 in. id, use am-0573.
Changes from 2007 FIRST Wheel
  • More material has been added to each of the spokes, adding significant structural support
  • More support for the bearing wall has been added
  • A harder durometer rubber makes up the treads, providing less traction compared to the 2007 wheel
  • Treads are a slightly darker color of gray

Made in the USA:

Bearings were not made in the USA. All other components were designed, manufactured, and assembled in the United States of America.

Specifications

  • Bolt Pattern: six holes (0.17 in. diameter) on a 1.875 in. diameter bolt circle
  • Bore: 0.500 in. diameter bearing bore
  • CoF: 0.9 static (on tight pile carpet)
  • Diameter: 6 in.
  • Material: black polycarbonate,75A durometer urethane rubber
  • Weight: 0.51 lbs
