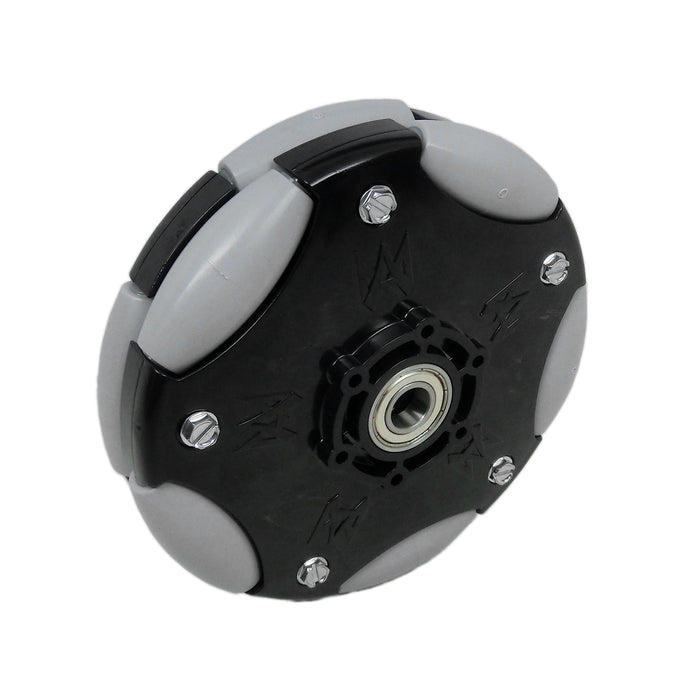

6 in. DuraOmni Wheel with 1/2 in. Bearings
This Heavy Duty (HD) omni wheel is a vast improvement over our older 6" omni wheels and other wheels on the market. The body has been totally redesigned with durability and mobility in mind. The de...Read More
0 reviews
Write a ReviewProduct Overview
This Heavy Duty (HD) omni wheel is a vast improvement over our older 6" omni wheels and other wheels on the market. The body has been totally redesigned with durability and mobility in mind. The design intent is to provide a smooth roll along with the ability to handle impacts very well.
The body is made from black polycarbonate, while the rollers are each molded with a nylon core and TPU tread. These rollers spin smoothly on a captured dowel pin.
The body is made from black polycarbonate, while the rollers are each molded with a nylon core and TPU tread. These rollers spin smoothly on a captured dowel pin.
Specifications
- Bolt Pattern: 6 holes (0.157 in.) on a 1.875 in. bolt circle
- Bore: 1.125 in. diameter x 0.36 in. deep with a 0.96 in. diameter thru hole
- Diameter: 6 in.
- Load Capacity: 120 lbs
- Material: Black polycarbonate
- Product Lifecycle: purchased as <a href='/products/6-in-duraomni-wheel'>am-3154</a> and <a href='/products/1-2-in-id-bearing-shielded-r8zz?quantity=2'>am-0181 x 2</a>
- Roller Axle: 1/8 in. diameter steel dowel pin
- Roller Durometer: 80A
- Rollers: 10
- Weight: 1.2 lbs
