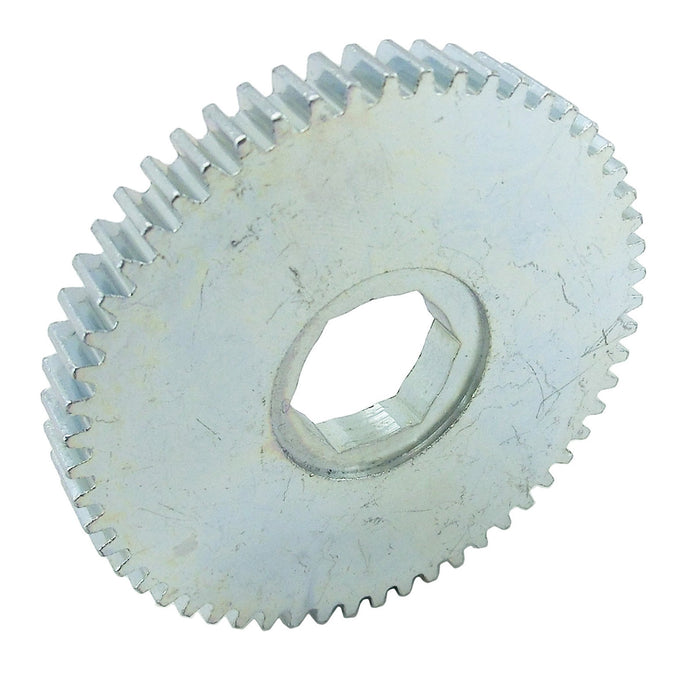

56 Tooth 20 DP 0.75 in. Hex Bore Steel Gear
Introducing FlexHub, designed by engineers from iR3 Creative Engineering, from Orlando, Florida. FlexHub is a modular gear & hub solution from iR3 Creative. The concept is pretty simple. There ...Read More
0 reviews
Write a ReviewProduct Overview
Introducing FlexHub, designed by engineers from iR3 Creative Engineering, from Orlando, Florida. FlexHub is a modular gear & hub solution from iR3 Creative. The concept is pretty simple. There is a hub, there is a gear, there are two retaining rings. Put them together into your assembly. If the gear ratio / shaft size / output / whatever isn't working rinse and repeat with a new hub or gear.
Gear Specifications (Common dimensions among all FlexHub Gears):
Gear Specifications (Common dimensions among all FlexHub Gears):
| Part # | Type | # of Teeth | Pitch Diameter | CAD | Weight | Price |
| am-2346 | Gear | 28 | 1.40 inch | STP | 0.09 lbs | $12.50 |
| am-2347 | Gear | 32 | 1.60 inch | STP | 0.13 lbs | $13.00 |
| am-2348 | Gear | 35 | 1.75 inch | STP | 0.17 lbs | $13.50 |
| am-2349 | Gear | 40 | 2.00 inch | STP | 0.25 lbs | $14.50 |
| am-2350 | Gear | 45 | 2.25 inch | STP | 0.33 lbs | $15.00 |
| am-2351 | Gear | 48 | 2.40 inch | STP | 0.38 lbs | $16.00 |
| am-2352 | Gear | 50 | 2.50 inch | STP | 0.42 lbs | $16.00 |
| am-2353 | Gear | 56 | 2.80 inch | STP | 0.54 lbs | $17.00 |
Specifications
- Bore: 0.75 in. Hex
- Diametral Pitch: 20
- Hub Outside Geometry: 0.75 in. Hex
- Hub Width: 0.4 - 0.41 in.
- Material: 12L14 Steel
- Pressure Angle: 14.5 Degrees
- Product Lifecycle: replaced by <a href='/products/56t-20dp-0-5-in-hex-bore-steel-gear'>am-0742</a>
- Teeth: 56
- Weight: 0.6 lbs
Documents
Layout Print(s)
CAD File(s)
Don't see what you need?
Returns
Returns are not accepted for this product.
