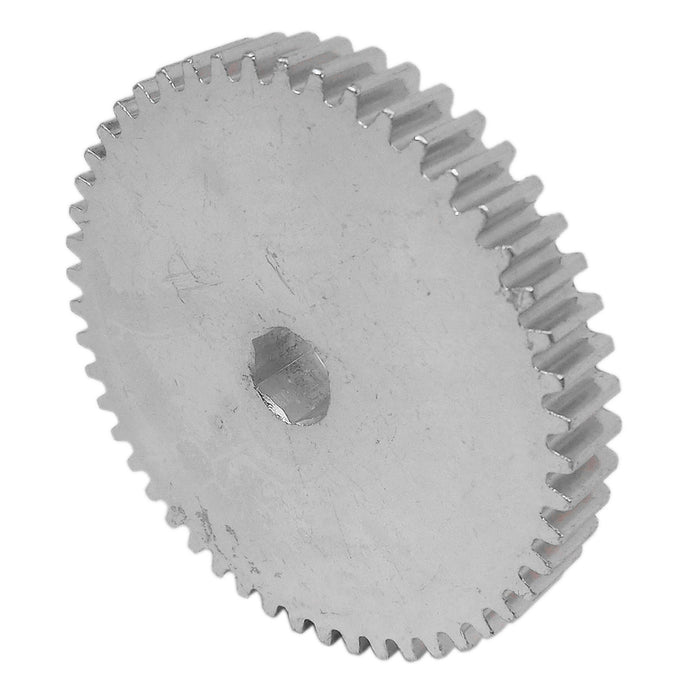

50 Tooth 20 DP 0.375 in. Hex Bore Aluminum Gear
This part can replace the Large Cluster Gear on the Toughbox and save 0.28 Lbs.
Product Overview
This part can replace the Large Cluster Gear on the Toughbox and save 0.28 Lbs.
Specifications
- Bore: 0.375 in. Hex
- Diametral Pitch: 20
- Finish: Nituff Anodized
- Material: 6061 Aluminum
- Pitch Diameter: 2.5 in.
- Pressure Angle: 14.5 Degrees
- Product Lifecycle: discontinued, <a href='/products/50-tooth-20-dp-0-375-in-hex-bore-steel-gear'>see this steel option</a>
- Teeth: 50
- Thickness: 0.342 in.
- Weight: 0.25 lbs
Documents
Layout Print(s)
CAD File(s)
Don't see what you need?
Returns
Returns are not accepted for this product.
Recommendations
6 reviews
-
Fitment was great!
This gear helped reduce weight and fit exactly as the provided gear did.
-
Keep the weight down
well made gear. very light. Thanks Jerry for all the support on these parts.
-
As expected
Will be using on my new Gearbox!
-
