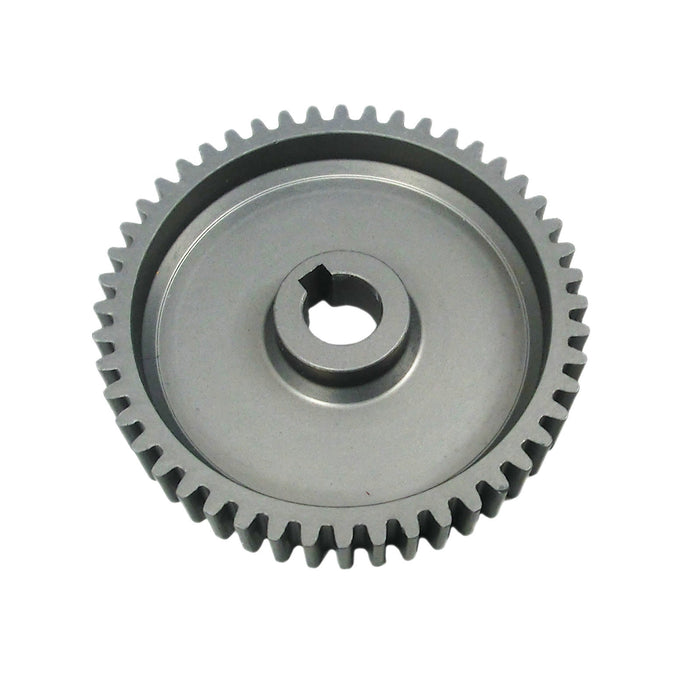

48 Tooth 20 DP 10 mm Round Bore Aluminum Gear
This 48 tooth aluminum gear is pivotal in steering the Swerve & Steer module. It drives a 40 tooth gear, and it is driven from the PG71 gear-motor. The surface of this aluminum gear is treate...Read More
0 reviews
Write a ReviewProduct Overview
This 48 tooth aluminum gear is pivotal in steering the Swerve & Steer module. It drives a 40 tooth gear, and it is driven from the PG71 gear-motor. The surface of this aluminum
gear is treated with a very durable hard coat anodization to allow for
wear. This gear receives a fairly low torque, and therefore aluminum is
a good, lightweight material for it's use.
Specifications
- Bore: 10 mm Round w/ keyway
- Diametral Pitch: 20
- Face Width: 0.45 in.
- Finish: Hard Anodized
- Material: 6061 Aluminum
- Pitch Diameter: 2.4 in.
- Pressure Angle: 14.5 Degrees
- Product Lifecycle: discontinued
- Teeth: 48
- Weight: 0.15 lbs
Documents
Layout Print(s)
CAD File(s)
