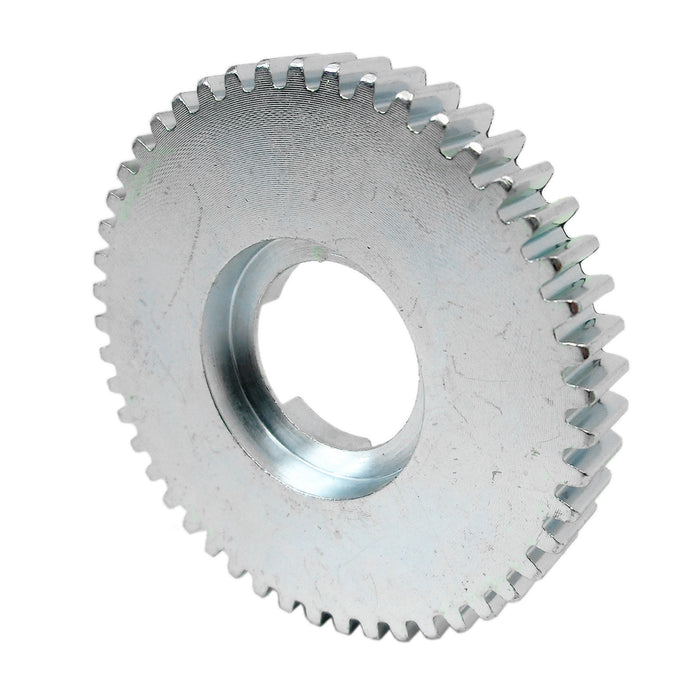

48 Tooth 20 DP 1.125 in. Round Bore Steel Dog Pattern Gear
This product uses a dog gear for shifting gearboxes. The mating dog gear can be found here.
Product Overview
This product uses a dog gear for shifting gearboxes. The mating dog gear can be found here.
Specifications
- Bore: 1.125 in. Round
- Diametral Pitch: 20
- Material: 4140 steel
- Pitch Diameter: 2.4 in.
- Pressure Angle: 14.5 Degrees
- Product Lifecycle: replaced by <a href='/products/46-tooth-20-dp-steel-4-tooth-dog-gear'>am-3540</a>
- Teeth: 48
- Thickness: 0.375 in.
- Weight: 0.35 lbs
Documents
Layout Print(s)
CAD File(s)
Don't see what you need?
Returns
Returns are not accepted for this product.
Recommendations
1 review
-
Very Good
This product is very high quality and just as the CAD files and drawings show. We have had very good luck with it in a two-speed gearbox we made.
