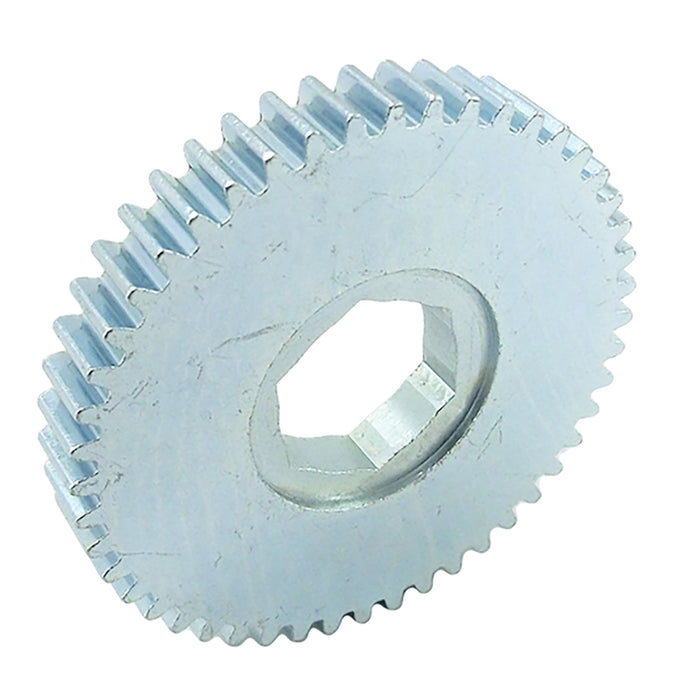

48 Tooth 20 DP 0.75 in. Hex Bore Steel Gear

This product is currently unavailable for purchase.

Introducing FlexHub, designed by engineers from iR3 Creative Engineering, from Orlando, Florida. FlexHub is a modular gear & hub solution from iR3 Creative. The concept is pretty simple. There ...Read More

0 reviews

Write a Review

View Full Details

Product Overview

Introducing FlexHub, designed by engineers from iR3 Creative Engineering, from Orlando, Florida. FlexHub is a modular gear & hub solution from iR3 Creative. The concept is pretty simple. There is a hub, there is a gear, there are two retaining rings. Put them together into your assembly. If the gear ratio / shaft size / output / whatever isn't working rinse and repeat with a new hub or gear.

Gear Specifications (Common dimensions among all FlexHub Gears):
Part #Type# of TeethPitch DiameterCADWeightPrice
am-2346Gear281.40 inchSTP0.09 lbs$12.50
am-2347Gear321.60 inchSTP0.13 lbs$13.00
am-2348Gear351.75 inchSTP0.17 lbs$13.50
am-2349Gear402.00 inchSTP0.25 lbs$14.50
am-2350Gear452.25 inchSTP0.33 lbs$15.00
am-2351Gear482.40 inchSTP0.38 lbs$16.00
am-2352Gear502.50 inchSTP0.42 lbs$16.00
am-2353Gear562.80 inchSTP0.54 lbs$17.00

Specifications

  • Bore: 0.75 in. Hex
  • Diametral Pitch: 20
  • Hub Outside Geometry: 0.75 in. Hex
  • Hub Width: 0.4 - 0.41 in.
  • Material: 12L14 Steel
  • Pressure Angle: 14.5 Degrees
  • Product Lifecycle: discontinued
  • Teeth: 48
  • Weight: 0.42 lbs
