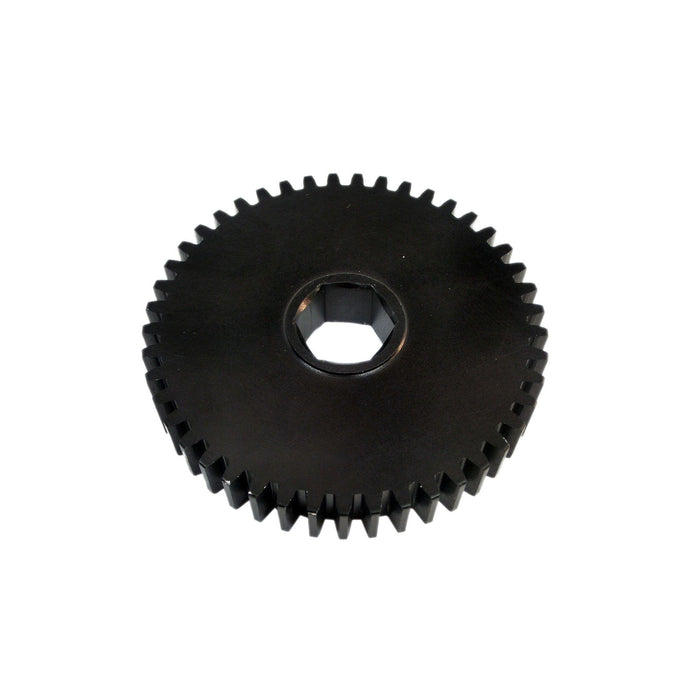

45 Tooth 20 DP 0.5 in. Hex Bore Aluminum Gear

This product is currently unavailable for purchase.

Aluminum version of 45T 20DP Hex Bore Steel Gear (am-0179).

0 reviews

Write a Review

View Full Details

Product Overview

Aluminum version of 45T 20DP Hex Bore Steel Gear (am-0179).

Specifications

  • Bore: 0.5 in. Hex
  • Diametral Pitch: 20
  • Material: 6061 Aluminum
  • Pitch Diameter: 2.25 in.
  • Pressure Angle: 14.5 Degrees
  • Product Lifecycle: replaced by <a href='/products/20-dp-gears?sku=am-4394'>am-4394</a>
  • Teeth: 45
  • Thickness: 0.4 in.
  • Weight: 0.25 lbs

Documents

Layout Print(s)
am-2035 45 Tooth Aluminum Gear with 500 Hex Bore.pdf
CAD File(s)
am-2035 45 Tooth Aluminum Gear with 500 Hex Bore.STEP
Don't see what you need?
See_all_our_guides,_drawings_and_CAD_files_here

Returns

Returns are not accepted for this product.
