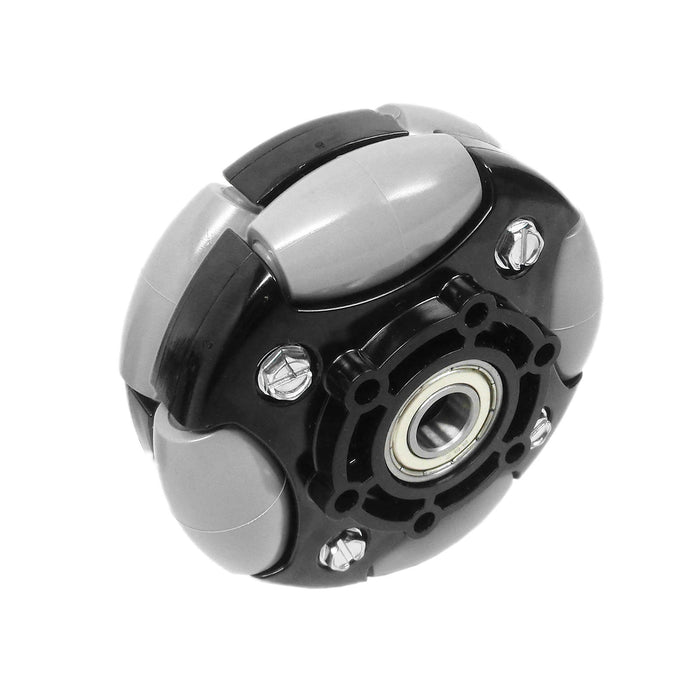

4 in. DuraOmni Wheel w/ 1/2 in. Bearings
4" DuraOmni Wheel with 1/2" id bearings. This new heavy duty omni wheel is a vast improvement over our older 4" omni wheels and other wheels on the market. The body has been totally redesigned ...Read More
Product Overview
4" DuraOmni Wheel with 1/2" id bearings. This new heavy duty omni wheel is a
vast improvement over our older 4" omni wheels and other wheels on the
market. The body has been totally redesigned with durability and
mobility in mind. The design intent is to provide a smooth roll along
with the ability to handle impacts very well.
The body is made from black polycarbonate, while the rollers are each molded with a nylon core and TPU tread. These rollers spin smoothly on a captured 1/8" x 1.875" dowel pin.
The body is made from black polycarbonate, while the rollers are each molded with a nylon core and TPU tread. These rollers spin smoothly on a captured 1/8" x 1.875" dowel pin.
Specifications
- Bolt Pattern: 6 holes (0.157 in.) on a 1.875 in. bolt circle
- Bore: 0.5 in.
- Diameter: 4 in.
- Load Capacity: 120 lbs (rollers don't spin past this point)
- Material: Black polycarbonate, Gray TPU, white nylon, nylon spinning on steel
- Product Lifecycle: purchased as <a href='/products/4-in-duraomni-wheel'>am-3047</a> and <a href='/products/1-2-in-id-bearing-shielded-r8zz'>Qty 2 of am-0181</a>
- Roller Axle: 0.125 in. diameter steel dowel pin
- Roller Durometer: 80A
- Rollers: 8
- Weight: 0.8 lbs
- Width Across Middle: 2 in.
Returns
Returns are not accepted for this product.
