39 Tooth HTD Plastic Drive Pulley Kit with Hex Hub

This product is currently unavailable for purchase.

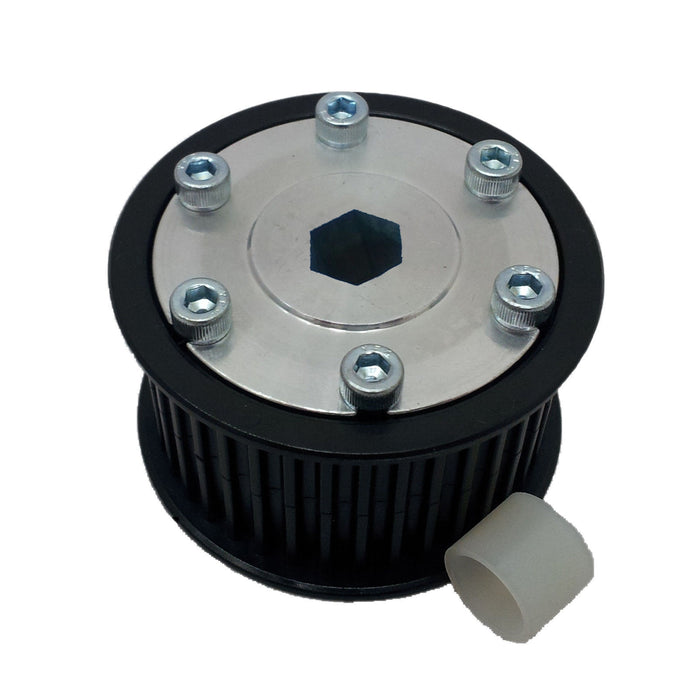

Here is a 39 tooth HTD profile pulley, fitting any two 15mm wide HTD timing belts. This pulley can fit on the output shaft of a gearbox, if the shaft is 1/2 in. hex. This is shipped as an un-assemb...Read More

View Full Details

Product Overview

Here is a 39 tooth HTD profile pulley, fitting any two 15mm wide HTD timing belts. This pulley can fit on the output shaft of a gearbox, if the shaft is 1/2 in. hex. This is shipped as an un-assembled kit.

Specifications

  • Belt Profile: 5mm pitch HTD timing belt 15mm wide
  • Bore: 0.50 in. Hex
  • Flange Diameter: 2.65 in.
  • Material: Aluminum bore, black polycarbonate pulley
  • Outside Diameter: 2.40 in.
  • Pitch Diameter: 2.44 in.
  • Product Lifecycle: replaced by <a href='/products/39-tooth-hdt-plastic-drive-pulley-kit-without-hub'>am-2361a</a> and purchase <a href='/products/500ex-hex-hub'>am-2568</a> separately
  • Teeth: 39
  • Weight: 0.32 lbs
  • Width: 1.58 in.
