375 Hex Hub - NOT TIMED
Be aware these hubs are not timed, so the hex broach is not aligned to any certain angle in reference to the mounting holes. If you want these same hubs with timed holes / hex broach, then to to th...Read More
0 reviews
Write a ReviewProduct Overview
Be aware these hubs are not timed, so the hex broach is not aligned to any certain angle in reference to the mounting holes. If you want these same hubs with timed holes / hex broach, then to to the am-2231b page.
Product Overview:

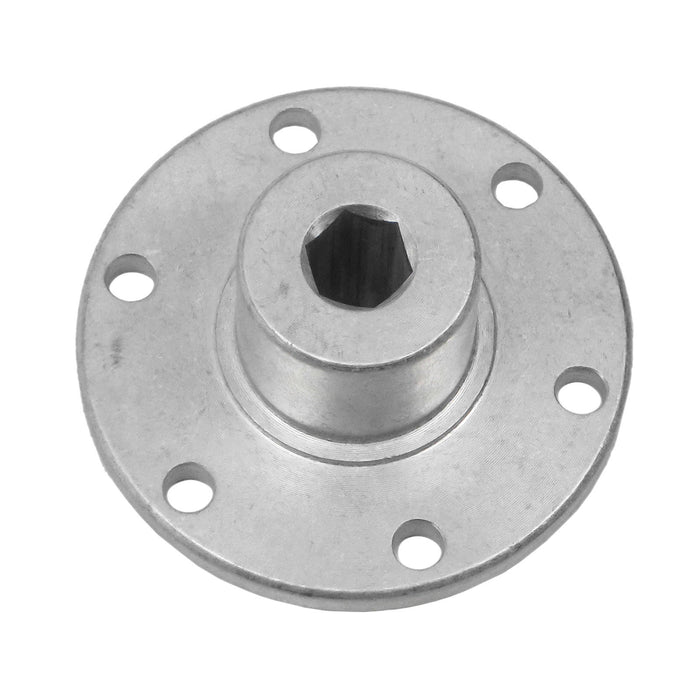

This hub features a .375" Hex bore and fits all AndyMark wheels. The bolt pattern is designated as 6 holes evenly spaced on a 1.875" diameter bolt circle.
Product Overview:
This hub features a .375" Hex bore and fits all AndyMark wheels. The bolt pattern is designated as 6 holes evenly spaced on a 1.875" diameter bolt circle.
This part is designed and fabricated in Indiana, USA.
Specifications
- Bolt Pattern: 0.204 in. diameter holes, evenly spaced on a 1.875 in. diameter bolt circle
- Bore: 0.376 - 0.380 hex bore (broached) - NOT ALIGNED
- Material: 6061 Aluminum
- Outside Diameter: 2.40 in.
- Product Lifecycle: replaced by <a href='/products/0-375-in-hex-hub-with-5-8-in-counterbore'>am-2231b</a>
- Weight: 0.11 lbs
Returns
Returns are not accepted for this product.
