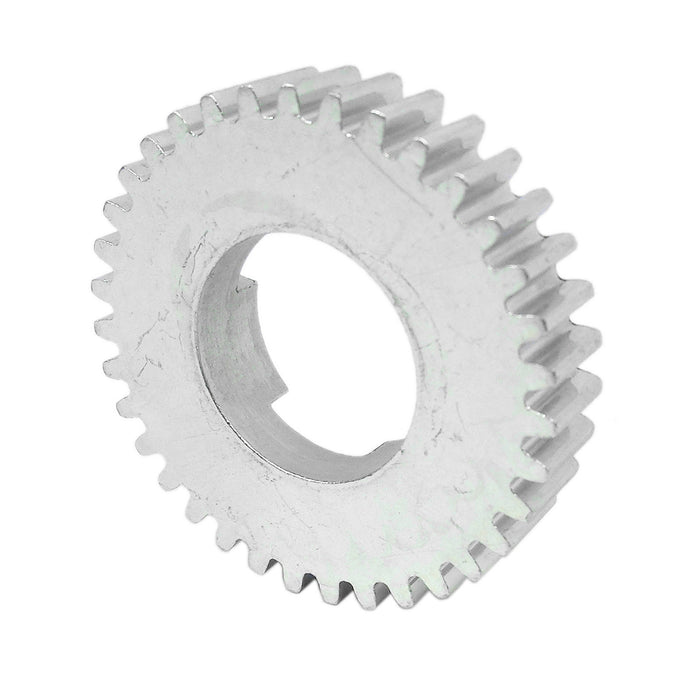

35 Tooth 20 DP 0.875 in. Round Bore Steel Dog Pattern Gear

This product is currently unavailable for purchase.

This product uses a dog gear for shifting gearboxes. The mating dog gear can be found here.

star star star star star

Read Reviews (1) Write a Review

View Full Details

Product Overview

This product uses a dog gear for shifting gearboxes. The mating dog gear can be found here.

Specifications

  • Bore: 0.875 in. Round
  • Diametral Pitch: 20
  • Material: 4140 Steel
  • Pitch Diameter: 1.75 in.
  • Pressure Angle: 14.5 Degrees
  • Product Lifecycle: discontinued
  • Teeth: 35
  • Thickness: 0.375 in.
  • Weight: 0.2 lbs

Documents

Layout Print(s)
am-0023 Small Output Gear, 35 Tooth REV2.PDF
CAD File(s)
am-0023 Small Output Gear, 35 Tooth.STEP
Don't see what you need?
See_all_our_guides,_drawings_and_CAD_files_here

Returns

Returns are not accepted for this product.
