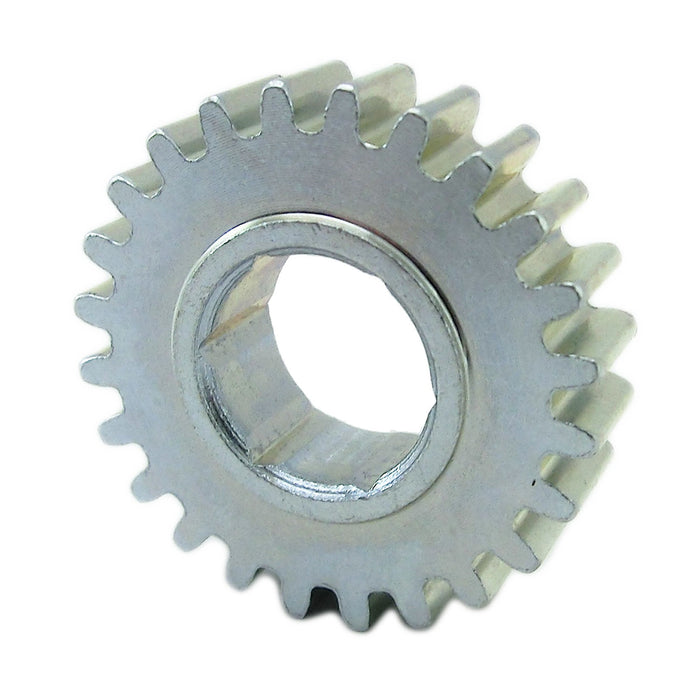

24 Tooth 20 DP 0.5 in. Hex Bore Steel Gear

This product is currently unavailable for purchase.

This gear is used in the Spin Box

star star star star star

Read Reviews (1) Write a Review

View Full Details

Product Overview

This gear is used in the Spin Box

Specifications

  • Bore: 0.5 in. Hex
  • Diametral Pitch: 20
  • Face Width: 0.33 in.
  • Material: 4140 Steel
  • Pitch Diameter: 1.2 in.
  • Pressure Angle: 14.5 Degrees
  • Product Lifecycle: replaced by <a href='/products/20-dp-gears?sku=am-4214'>am-4214</a>
  • Teeth: 24
  • Thickness: 0.38 in.
  • Weight: 0.2 lbs

Documents

CAD File(s)
am-2459 24T 20dp 500h.STEP
Don't see what you need?
See_all_our_guides,_drawings_and_CAD_files_here

Returns

Returns are not accepted for this product.
