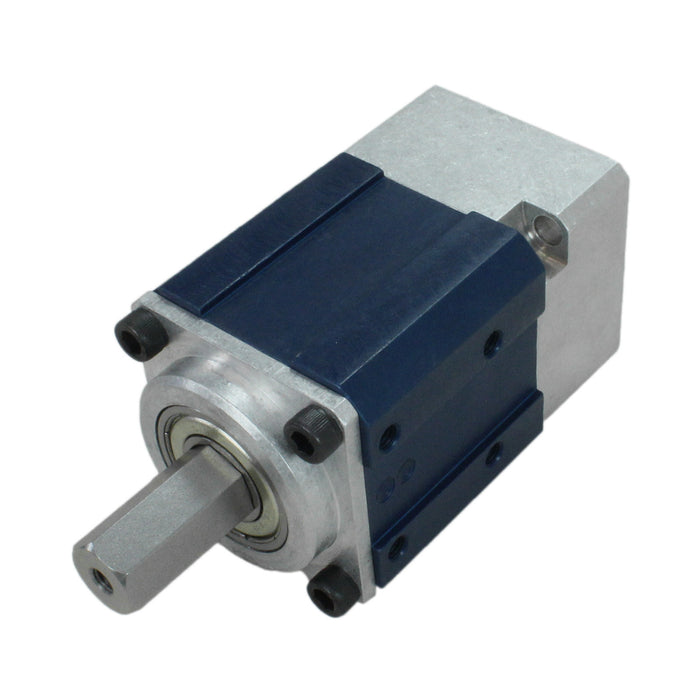

16:1 CIM Sport with 1/2 in. Hex Output
The gearbox has a gear ratio of 16:1 with a ½ in. Hex Output. A free packet of red tacky grease (am-2768) is included with every gearbox purchased. This grease must be used to coat every intern...Read More
0 reviews
Write a ReviewProduct Overview
The gearbox has a gear ratio of 16:1 with a ½ in. Hex Output. A free packet of red tacky grease (am-2768) is included with every gearbox purchased. This grease must be used to coat every internal surface of the gearbox before use.
The CIM Sport includes mounting hardware to attach any CIM style motor or gearbox. To install one of these motors, press on the included pinion gear using an arbor press. This press fit ensures a solid mechanical connection between the pinion gear and the motor. This pinion assembly is not susceptible to vibration, and never needs to be checked once installed.
Specifications
- Free Speed : 331.88 RPM
- Height: 1.875 in.
- Material: Cold formed Steel
- Maximum Torque: 5494.4 oz. - in.
- Overall Length: 4.17 in.
- Product Lifecycle: replaced by <a href='/products/cim-sport-options?sku=am-4008_016'>am-4008_016</a>
- Weight: 1.2 Lbs
- Width: 1.875 in.
Returns
Returns are not accepted for this product.
