Connector Male 2-Pos 8-20 AWG Cage Clamp WAGO 831-3202

This product is currently unavailable for purchase.

Here is the Multi Connection System Maxi from WAGO. This is the Male connection side of an industrial connection solution. This connector is great for users who don't want to crimp and build their ...Read More

0 reviews

Write a Review

View Full Details

Product Overview

Here is the Multi Connection System Maxi from WAGO. This is the Male connection side of an industrial connection solution. This connector is great for users who don't want to crimp and build their own connection system.

This connector mates with the Female (am-2302) version of the same connector.

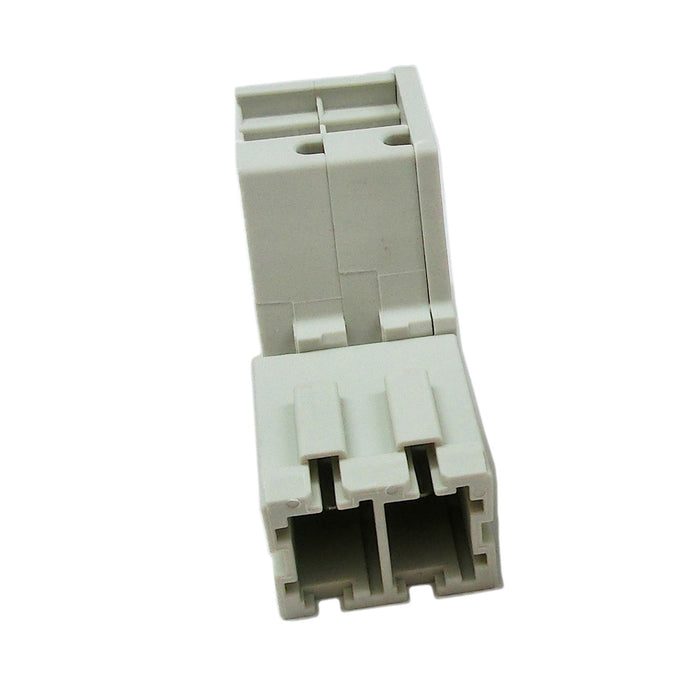

Only one 831-3202 connector is included in this part. The above picture simply shows two views of the same connector.

Specifications

  • Connecting Tech: Male
  • Gauge: 08-20 AWG
  • Maximum Current: 50 AMPs
  • Pin spacing: 7.62 mm/0.3 in.
  • Positions: 2
  • Product Lifecycle: discontinued
  • Size: 1.81 x 0.69 x 1.06 in.
  • Voltage: 300/600 V
  • Weight: 0.03 lbs

Documents

Don't see what you need?

Returns

Returns are not accepted for this product.
