RGB Individually Addressable LED Light Strip With Arduino Controller Kit (am-3010)
RGB Individually Addressable LED Light Strip With Arduino Controller Kit (am-3010)
Incorrect Power Cable shown
Alternative Views:

Price: $145.00

Stock Status: In Stock

Info Downloads
Product Overview:
This is a complete setup to drive our RGB LED Strip, perfect to light up your robot for show. It comes as a full 8.2ft (2.5m) strip and can be separated at each junction between LEDs for customization. This kit also includes an Ethernet Microcontroller that is Arduino-Compatible to drive the colors to any extent you want. These LED strips use the WS2812B LED. These are 5V, multi-colored, single wire addressable LEDs. The WS2812B LED is similar to the WS2812 but with reverse polarity protection on the power input side.

Example Code

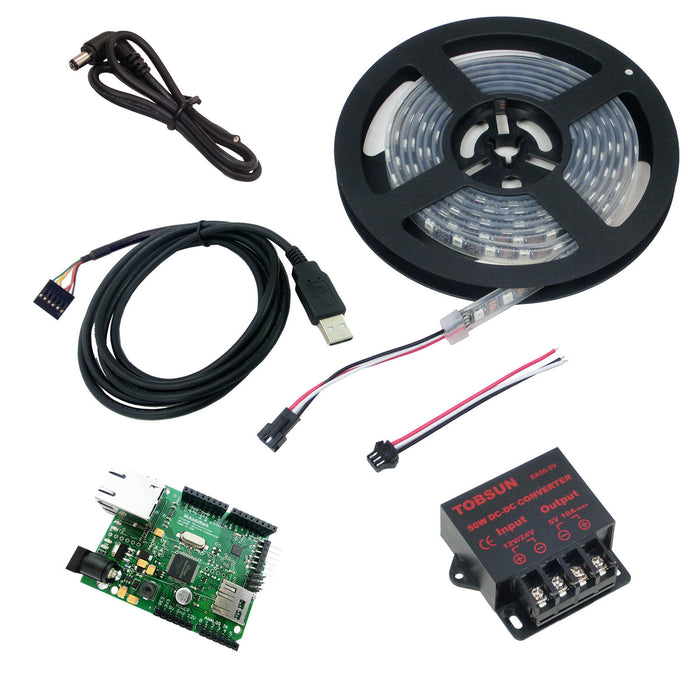

Kit Includes:

  • WS2812b chip (WS2811 IC built in SMD5050)
  • 60 LEDs per Meter (150 Individually addressable RGB LEDs on the 8.2 ft section)
  • Maximum 5V @ 60mA draw per 1.3" strip segment which has 2 LEDs on it (both LEDs on full brightness)
  • Maximum 5V @ 4.5A draw for entire strip (Entire strip on full brightness)
  • Power: 15 Watts
  • Rated Life: 50000 Hours
  • 5VDC power requirement (do not exceed 6VDC) - no polarity protection
  • 1 integrated RGB LEDs per segment, individually controllable
  • LED wavelengths: 630nm/530nm/475nm

Average Customer Review: 5 of 5 Total Reviews: 1 Write your own review!

  0 of 0 people found the following review helpful:
What are the specifications of these LED's March 28, 2017
Reviewer: Anonymous Person from Muncie Indiana
Need to know the amperage usage, etc., for these LED's...and other specs for pixel data, etc.....beyond just example code.
