Product Overview:
This is an encoder cable used to provide signal to our 775 motors (with long backshaft) and also the NeveRest 40 Motor. It has a common white connector on the end addressing the encoder and four individual female connections to fit into the input connector on a robot controller.
This encoder also connects to PG71 Planetary Gearbox with RS775 Motor and Encoder, am-2971.
Specifications:
- Wire size: 22 gauge
- Connections: 4-pin white connector (plugs into encoder), Four individual 1-pin black connectors (plugs into motor controller)
- Length: 0.5 meter (19.5 inches)

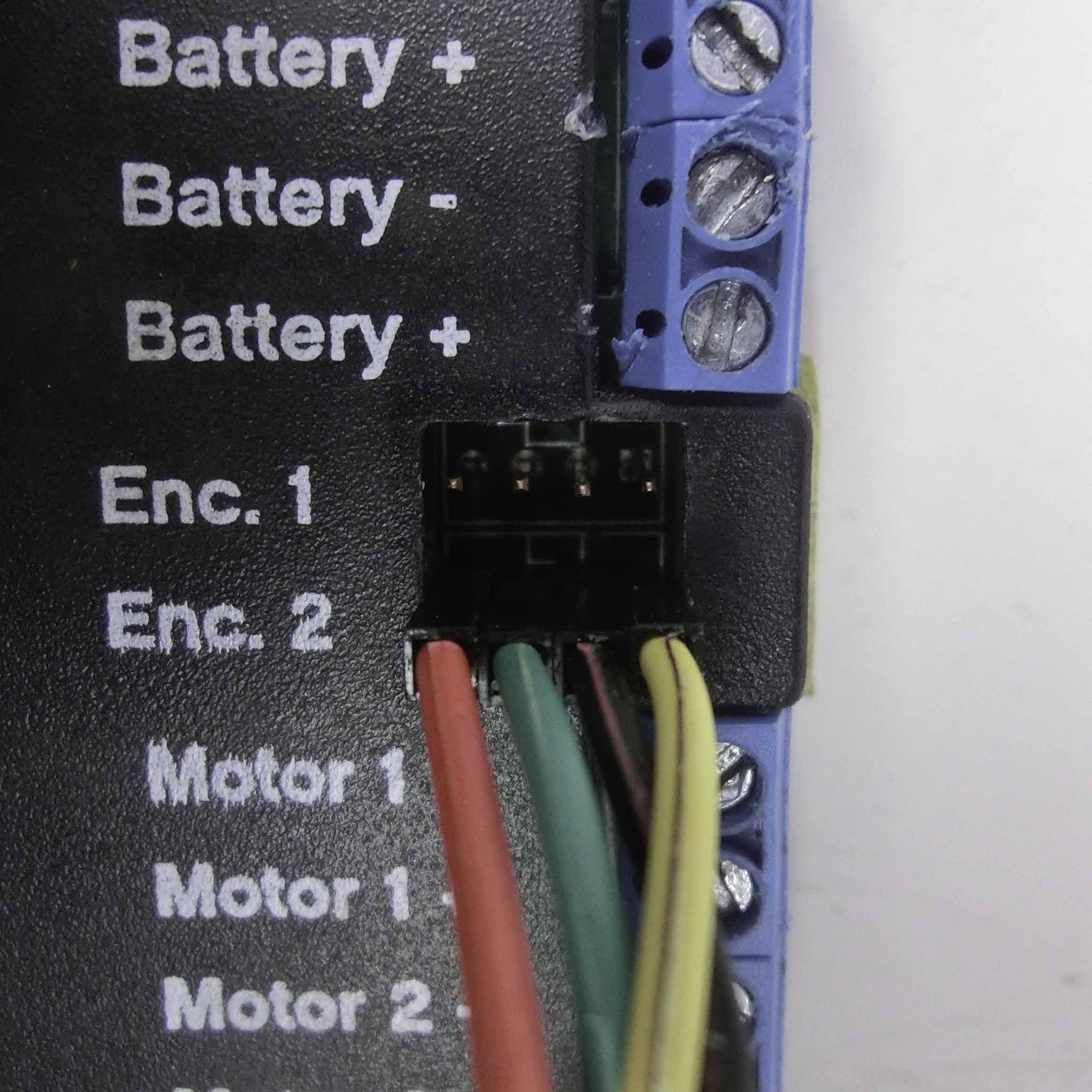

- If using this cable as a replacement for am-2992, ensure the individual pins of this cable match the picture below.
Left to Right; Red, Green, Black, Yellow.
|
|
|
High quality cable
