Connector, Female 2-Pos, 8-20 AWG, Cage Clamp, WAGO 831-3102 (am-2302)


Alternative Views:


Price: $4.50

Stock Status: In Stock
Qty:

Info Downloads

Product Overview:
Here is the Multi Connection System Maxi from WAGO. This is the Female connection side of an industrial connection solution. This connector is great for users who don't want to crimp and build their own connection system.

This connector mates with the Male (am-2303) version of the same connector.

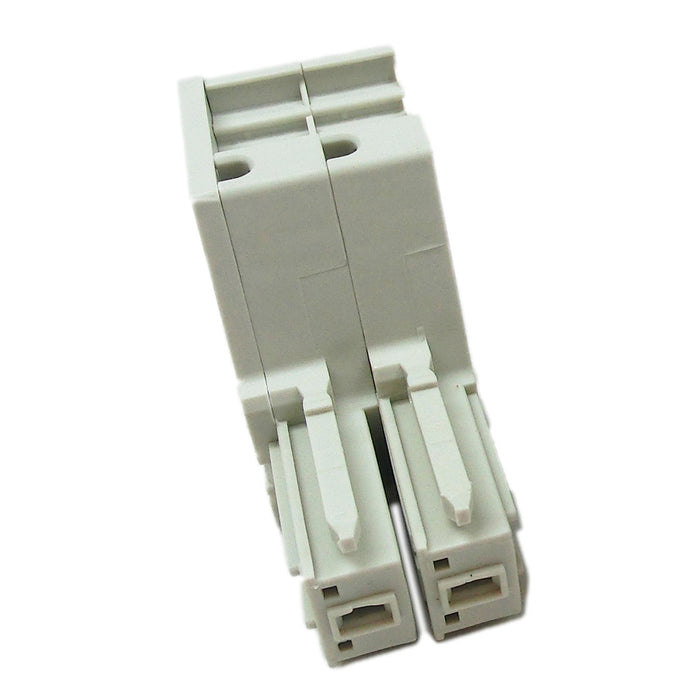

Only one 831-3102 connector is included in this part. The above picture simply shows two views of the same connector.

Specifications:
  • 2 Position
  • Female Connection
  • Wire Gage: AWG 20 – 8
  • CAGE CLAMP®S connection
  • 100% protected against mis-mating
  • Pin spacing 7.62 mm/0.3 in
  • Maximum current: 50 amps
  • 300/600 V
  • Weight: 0.03 lbs pounds
  • Size: 1.63 in x 0.69 in x 1.06 in
