Product Overview:
This is BRIGHT!

Here is an all-in-one solution to your high-powered LED lighting needs! This module can be connected directly to any 8-30V battery (or power supply) without the need for an external LED driver module or current limiting resistor. Adding to its versatility, the onboard current regulation circuitry allows the module to operate flawlessly without the need of a heat sink. Compact in size (1" x 1.25"), it is ideal for multiple home, commercial, industrial, and hobby applications.

This LED module is great at illuminating the 3M 8830 reflective tape used in the 2013 FIRST Robotics Competition. Here are some example pictures taken with the module mounted next to a Axis M1011 camera pointed at 2013 FRC goals, at a distance of 15 feet:

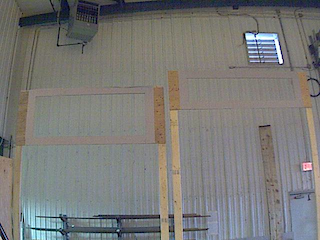

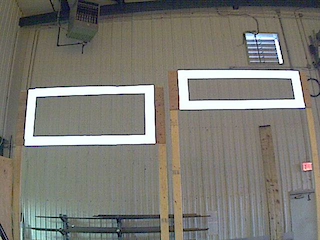

Without LED module	With LED module, mounted 1" from camera lens

Specifications:

Number of LEDs: 6
Power: 74mA@12VDC
Input Voltage: 8-30V
Color: White
Viewing Angle: 120 degrees
Lumen: 87
Weight: 0.0125 lbs
Heat-sink Required: No
Mountable & Linkable: Yes
Power Consumption: 1 Watt
Reverse Polarity Protected: Yes
Built-in LED Drive
