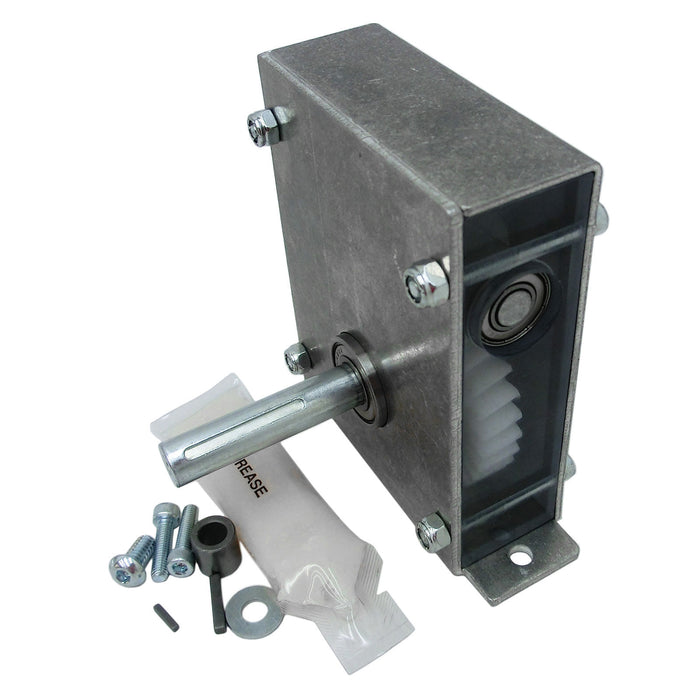

  WormBox (am-0917)




Price: $119.00

Stock Status: In Stock
Qty:

Description Files & Documents

Product Overview:

Improved with a thicker Output Plate and a new CIM Thrust Spacer, here is a lightweight gearbox for the CIM Motor, intended for being a lightweight drive gearbox or a gearbox for driving a medium-weight robot arm.

Specifications:
  • Overall Ratio: 16:1
  • Gear Material: High-Strength Nylon
  • Weight: 1.16 pounds (without motor)
  • Input: 8mm (0.313") Shaft, 2mm keyway
  • Output Shaft: 1/2" Diameter, 1/8" keyway, 4140 steel
  • Max Output Torque: 70 foot-pounds

Included Hardware:

  • One - Plastic Worm Gear (am-0934)
  • One - Plastic Driven Gear, 32 tooth (am-0933)
  • One - Back Plate (am-0918)
  • One - Output Plate (am-0919a)
  • One - End Plate (am-0920)
  • One - Motor Plate (am-0921)
  • One - Output Shaft (am-0922)
  • One - Worm Shaft (am-0923)
  • One - Bronze Spacer 0.5" L x 5/16"ID x 0.5"OD (am-2698)
  • Two - FR8ZZ Bearing (1/2" id, flanged) (am-0030)
  • One - FR6ZZ Bearing (3/8" id, flanged) (am-0028)
  • One - Shaft Adapter, 8mm to 500 Hex (am-0588)
  • Four - Nylock Nut, #10-32
  • One - 1/4 Washer
  • One - 1/4-20 x 1/2 BHCS
  • Four - #10-32 x 1-3/4 SHCS
  • Two - #10-32 x 3/4 SHCS
  • Two - Spring Pin, 3/16 x 3/4
  • One - 1/8" Machine Key (am-1043)
  • Two - Plastic Spacer, 3/16" long, 1/2" id
  • One - 2mm Machine Key (am-01121)
  • Two - Worm Gear Hub Sleeve
