Home > Wheels >

8" Dualie Plastic Omni Wheel (am-0463)


Price: $64.00

Stock Status: In Stock
Qty:

Info Downloads

Product Overview:

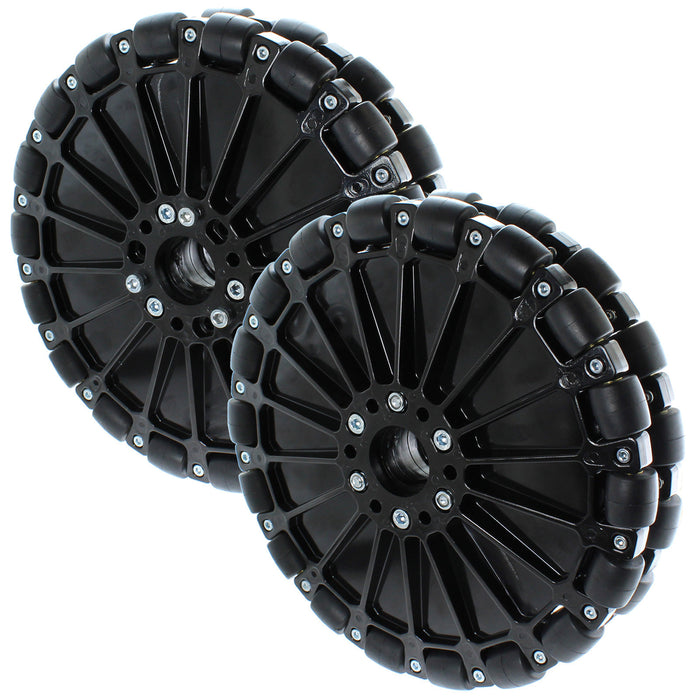

8" Dualie Plastic Omni Wheel

Specifications:
  • Diameter: 8 inches
  • Width Across Middle: 2.04 inches
  • Width Including Screws: 2.22 inches
  • Bore: 1.125 inch diameter bore, 1/4 inches deep on either side, 0.95 inch diameter thru hole
  • Bolt Pattern: 6 hole on a 1.875" diameter bolt circle
  • Body Material: Black Polycarbonate
  • Load Capacity: 120 pounds (rollers don't spin pas this weight)
  • Weight:2.2 pounds
  • Number of Rollers: 36
  • Roller Material: Black SBR Rubber
  • Roller Durometer: 80A
  • Roller Bearing Material: Brass
  • Roller Axle: Steel Dowel Pin
  • Roller Diameter: 3/4 inch
  • Repairable by removing interior #10-32 screws and perimeter M3 screws
Included Hardware: Usage:
With Axle and Hub:
  • If you wish to drive this wheel with an Axle and Hub, you can pick your hub by fitting any of the AndyMark hubs (except the Small DD Globe Hub) to this wheel. Hubs are NOT included in the price of the wheel. If this is your choice, then no bearing is needed. To install a hub onto this wheel, longer screws will be needed to replace those on this wheel (3 or 6 of them)
With Sprocket:
  • If you wish to drive this wheel with a sprocket, then the sprocket needs to be attached to the side of the wheel, and one ball bearing needs to be pressed into the wheel (on one side). For 1/2" id, use two am-0029 bearings and two am-0030 bearings. For 3/8" id use four am-0209 bearings.
With Bearings:
  • One ball bearing needs to be pressed into the wheel (on each side, totaling 4). For 1/2" id, use two am-0029 bearings and two am-0030 bearings. For 3/8" id use four am-0209 bearings.

Average Customer Review: 5 of 5 Total Reviews: 1 Write your own review!

  0 of 0 people found the following review helpful:

February 14, 2012
Reviewer: Brent Kellis-FRC Coach from Mesa, AZ United States


Was this review helpful to you?
