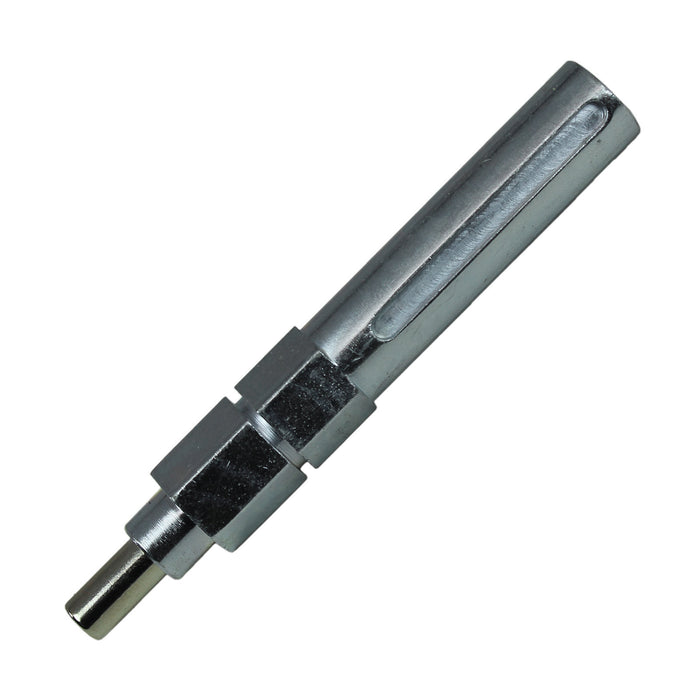

Short 1/2" Keyed Output Shaft with Magnet for Toughbox® Series (am-0153a)


Price: $11.00

Stock Status: In Stock
Qty:

Info Downloads

Product Overview:
This is an optional keyed steel output shaft for the Toughbox® series gearboxes. This shaft includes a pre-installed magnet designed specifically with the E4T OEM Miniature Optical Encoder (am-3132) and SRX Magnetic Encoder (am-3445) encoder in mind. This shaft has replaced am-0153.

Usage:
If using this shaft with the SRX Magnetic Encoder (am-3445), the SRX Magnetic Encoder Mounting Hardware Kit (am-3565) will be needed. The hardware allows for proper spacing of the encoder from the shaft magnet on Toughbox® Series Gearboxes and the EVO Shifter.

Specifications:
  • Material: 4140 Steel
  • Diameter of Large End: 0.49"
  • Diameter of Small End: 0.37"
  • Overall length: 3.62"
  • Includes a 1/8" keyway and a 1/4-20 tapped hole on the large end
  • Weight: 0.157 Lbs
