  Dog Gear (am-0020)




Price: $30.00

Stock Status: In Stock
Qty:

Description

Product Overview:

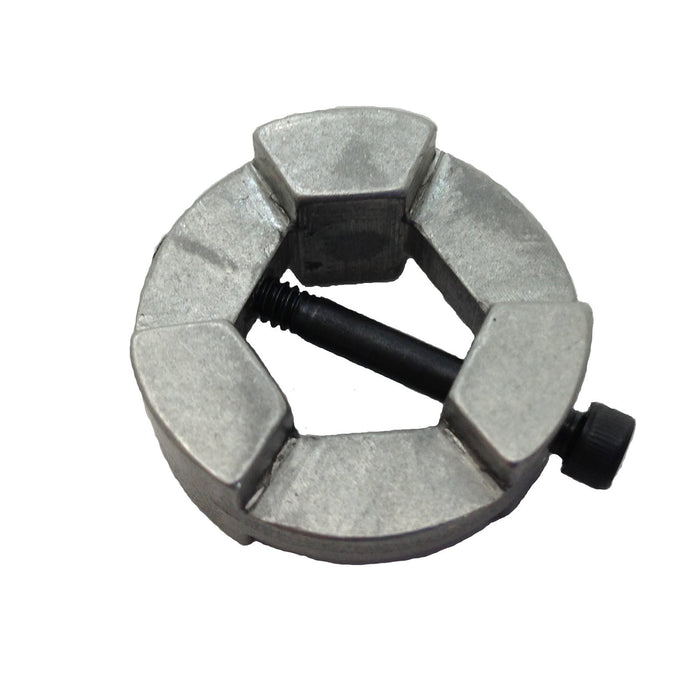

This is Dog Gear used within the AM Shifters and Super Shifters. It is shipped with a strong, solid body #4-40 screw*.

Specifications:
  • Material: stainless steel
  • Bore: 1/2" hex broached hole
  • Transverse hole: Counter bored for #4-40 screw, thru on one side, tapped on other side
  • Weight: 0.044 Pounds
  • Outside Diameter: 1 inch

* - This is an improved design over past models, where a 3/32 spring pin, a M2.5 screw, and a fully-threaded #4-40 screw have been used. We are choosing to use a screw in this location as opposed to a spring pin in order for the screw to be removed or installed easily. The new screw has a non-threaded body so it is stronger than previous screws used which had threads (and therefore less cross-sectional area) along the length of the body.




  0 of 0 people found the following review helpful:

Dog Gear Order Feedback April 11, 2014
Reviewer: mwibbels from Boise, ID United States
Quick shipping of dogs and bolts - need to work through the canted bore on one out of 3.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

Small Dog Gears August 27, 2012
Reviewer: Arthur Dutra from Meriden, CT United States
This order of gears was "in spec" . A previous order had minor issues with the center bore being sloppy, not a press fit, for the bearings.
