  Talon "Add a Motor" Package (am-2268)




Price: $98.00

Stock Status:(Out of Stock)
Qty:


Description Files & Documents How To / Pictures

Product Overview:

Updated 4/2/2013 with the NEW Talon SR! This is a complete kit that would include everything you need to add a motor to any controls package using PWM. This is a great addition if ordering the cRIO Ready Kit, Electronics for chassis system without the cRIO, or the Cross Link Controls Kit, Electronics for two drive wheels. Add two of these and you can have four driving wheels.

Included Hardware:

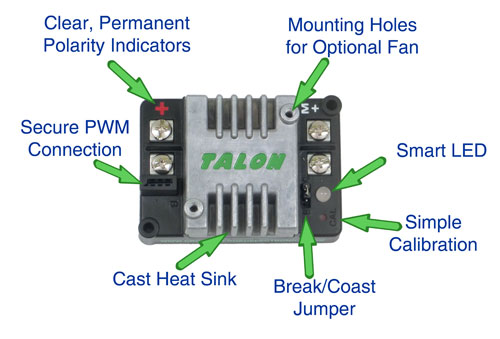

Talon Mechanical Features:

  • Small size: 2.73 x 1.90 x 1.15 inches
  • Weight: 0.2 pounds
  • Cooling methods:
    • Passive aluminum heat sink included in all units
    • Mounting holes to allow for optional 40 mm fan
    • New improved efficiency at stall, resulting in an even lower need for a heat sink
  • Conformal coating providing resistance to metal chip shorts
  • Tight, secure PWM connection: There may be some difficulty in inserting the PWM connector, but this tight fit is a FEATURE, because you do not want it to come out easily.
  • UPGRADES to the SR version:
    • Synchronous sign magnitude rectification on SR. (Talon has locked anti-phase)
    • Major change due to sign-magnitude synchronous rectification is the improved efficiency at stall, resulting in a lower need for a heat sink.
    • External crystal has been added to the processor to improve input time accuracy.
    • Smart LED blink rate has been updated so the transition between 100% and 99% throttle is obvious. (blink at 99 no blink at 100)
    • LED now blinks red/orange when a fault is detected. Faults are: low voltage on gate driver, over temperature and shorted FET.

Talon Electrical Features:

  • Input voltage: 6-28 VDC
  • Continuous current: 60 A
  • Peak current: 100 A
  • Input PWM signal: 0.9-2 ms @ 333 Hz
  • Input resolution: 10-bit (1024 steps)
  • Output resolution: 10-bit (1024 steps)
  • Output switching frequency: 15 kHz
  • Talon SR: Synchronous sign-magnitude rectification
  • Smart LED, blinks proportional to throttle, now with obvious change from 99% throttle to 100%
  • Simple calibration
  • User selectable brake/coast
  • 4% neutral dead band
  • Linear throttle response
Please see the Talon SR Speed Controller page for more details.

The Talon is designed, assembled and tested in Michigan.


Please contact Cross the Road Electronics support at support@crosstheroadelectronics.com for warranty issues or Return Merchandise Authorization (RMA) for the Talon.
